Now, let’s use AS-PATH for influencing path selection from R100 to R500.

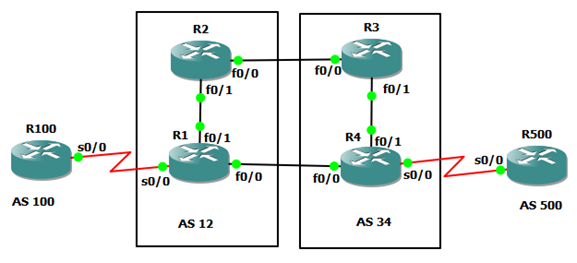

Let’s make the lab
R1#
interface loopback 0
ip address 1.1.1.1 255.255.255.255
interface f0/0
ip address 14.14.14.1 255.255.255.0
no shu
interface f0/1
ip address 12.12.12.1 255.255.255.0
no shu
interface s0/0
ip address 110.110.110.1 255.255.255.0
no shut
router bgp 12
neighbor 12.12.12.2 remote-as 12
neighbor 12.12.12.2 next-hop-self
neighbor 14.14.14.4 remote-as 34
neighbor 110.110.110.10 remote-as 100
network 1.1.1.1 mask 255.255.255.255
R2#
interface loopback 0
ip address 2.2.2.2 255.255.255.255
interface f0/0
ip address 23.23.23.2 255.255.255.0
no shu
interface f0/1
ip address 12.12.12.2 255.255.255.0
no shu
router bgp 12
neighbor 12.12.12.1 remote-as 12
neighbor 12.12.12.1 next-hop-self
neighbor 23.23.23.3 remote-as 34
network 2.2.2.2 mask 255.255.255.255
R3#
interface loopback 0
ip address 3.3.3.3 255.255.255.255
interface f0/0
ip address 23.23.23.3 255.255.255.0
no shu
interface f0/1
ip address 34.34.34.3 255.255.255.0
no shu
router bgp 34
neighbor 23.23.23.2 remote-as 12
neighbor 34.34.34.4 remote-as 34
neighbor 34.34.34.4 next-hop-self
network 3.3.3.3 mask 255.255.255.255
R4#
interface loopback 0
ip address 4.4.4.4 255.255.255.255
interface f0/0
ip address 14.14.14.4 255.255.255.0
no shu
interface f0/1
ip address 34.34.34.4 255.255.255.0
no shu
interface s0/0
ip address 150.150.150.4 255.255.255.0
no shut
router bgp 34
neighbor 14.14.14.1 remote-as 12
neighbor 34.34.34.3 remote-as 34
neighbor 34.34.34.3 next-hop-self
neighbor 150.150.150.50 remote-as 500
network 4.4.4.4 mask 255.255.255.255
R100#
interface loopback 0
ip address 10.10.10.10 255.255.255.255
interface s0/0
ip address 110.110.110.10 255.255.255.0
no shut
router bgp 100
neighbor 110.110.110.1 remote-as 12
network 10.10.10.10 mask 255.255.255.255
R500#
interface loopback 0
ip address 50.50.50.50 255.255.255.255
interface s0/0
ip address 150.150.150.50 255.255.255.0
no shut
router bgp 500
neighbor 150.150.150.4 remote-as 34
network 50.50.50.50 mask 255.255.255.255
Let’s check routing table to R500 in R1
R1(config-router)#do sh ip bgp 50.50.50.50
BGP routing table entry for 50.50.50.50/32, version 7
Paths: (2 available, best #2, table Default-IP-Routing-Table)
Advertised to update-groups:
1 2
34 500
12.12.12.2 from 12.12.12.2 (2.2.2.2)
Origin IGP, metric 0, localpref 100, valid, internal
34 500
14.14.14.4 from 14.14.14.4 (4.4.4.4)
Origin IGP, localpref 100, valid, external, best --- > best path by default
Let’s check BGP path selection to R500
R100(config-router)#do tracer 50.50.50.50 sour 10.10.10.10
Type escape sequence to abort.
Tracing the route to 50.50.50.50
1 110.110.110.1 4 msec 72 msec 68 msec
2 14.14.14.4 60 msec 48 msec 88 msec
3 150.150.150.50 160 msec * 60 msec
Now let’s use AS-PATH
R4#
router bgp 34
neighbor 14.14.14.1 route-map AS_PATH_OUT out
route-map AS_PATH_OUT
set as-path prepend 34 34 34
Then do clear ip bgp to change routing for path selection. Let’s check in R1.
R1(config-router)#do sh ip bgp 50.50.50.50
BGP routing table entry for 50.50.50.50/32, version 26
Paths: (2 available, best #1, table Default-IP-Routing-Table)
Flag: 0x820
Advertised to update-groups:
1
34 500
12.12.12.2 from 12.12.12.2 (2.2.2.2)
Origin IGP, metric 0, localpref 100, valid, internal, best ---> best path after change AS-PATH
34 34 34 34 500 --- > the AS-PATH will be long so will not choose
14.14.14.4 from 14.14.14.4 (4.4.4.4)
Origin IGP, localpref 100, valid, external
R1(config-router)#do sh ip bgp
BGP table version is 27, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight Path
*> 1.1.1.1/32 0.0.0.0 0 32768 i
*>i2.2.2.2/32 12.12.12.2 0 100 0 i
* 3.3.3.3/32 14.14.14.4 0 34 34 34 34 i
*>i 12.12.12.2 0 100 0 34 i
* 4.4.4.4/32 14.14.14.4 0 0 34 34 34 34 i
*>i 12.12.12.2 0 100 0 34 i
*> 10.10.10.10/32 110.110.110.10 0 0 100 i
*>i50.50.50.50/32 12.12.12.2 0 100 0 34 500 i
* 14.14.14.4 0 34 34 34 34 500 i
Make sure the trace route via R1>R2>R3>R4.
R100(config)#do tracer 50.50.50.50 sour 10.10.10.10
Type escape sequence to abort.
Tracing the route to 50.50.50.50
1 110.110.110.1 4 msec 12 msec 24 msec
2 12.12.12.2 68 msec 112 msec 84 msec
3 23.23.23.3 104 msec 120 msec 36 msec
4 34.34.34.4 108 msec 76 msec 104 msec
5 150.150.150.50 80 msec * 124 msec
