Lab 2. Frame Relay Static Mapping

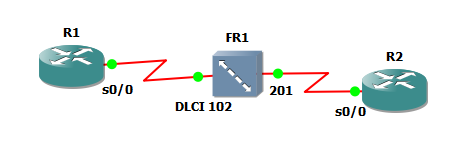

Beside dynamic mapping, there is static mapping. Here the topology:

R1#
interface Serial0/0
ip address 12.12.12.1 255.255.255.0
encapsulation frame-relay
clock rate 2000000
frame-relay map ip 12.12.12.2 102 broadcast
end

R2#
interface Serial0/0
ip address 12.12.12.2 255.255.255.0
encapsulation frame-relay
clock rate 2000000
frame-relay map ip 12.12.12.1 201 broadcast
end

Lets check the mapping and ping

R1#sh fra map
Serial0/0 (up): ip 12.12.12.2 dlci 102(0x66,0x1860), static,
broadcast,
CISCO, status defined, active

R2#sh fram map
Serial0/0 (up): ip 12.12.12.1 dlci 201(0xC9,0x3090), static,
broadcast,
CISCO, status defined, active


R2#ping 12.12.12.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 12.12.12.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/16/40 ms
